In order to integrate technologies and market forces from around the world to promote the healthy and rapid development
of China's new energy intelligent connected vehicle industry, the "2024 Global New Energy Intelligent Vehicle Technology
Innovation Conference" was successfully held on July 18, 2024, hosted by the China Sensor and Internet of Things Industry
Alliance and co organized by organizations such as the Shenzhen Intelligent Manufacturing Industry Promotion Association.
The conference aims to create a core technology exchange platform for upstream and downstream enterprises in the new
energy vehicle industry chain at home and abroad. This conference attracted over 500 audience members to participate
in person, and more than 25000 people watched the online live broadcast of this conference.
As a company that has been deeply involved in the field of new energy for many years, Datang NXP was invited to attend
the conference and delivered a speech on an innovative BMS solution for real-time detection of the internal temperature
of battery cells“
In this speech
We will first lead everyone
Understand the overview of Datang NXP
01
Datang NXP
Datang NXP
Datang NXP (DaEnXinyuan) is a Chinese automotive semiconductor company established in March 2014. We closely
follow the national strategy, focus on new energy vehicles and energy storage, develop battery management chips,
and contribute to the localization of core components
For many years, we have been deeply involved in the field of technology research and development
Independently developed characteristic battery management chip
With proprietary technology and knowledge

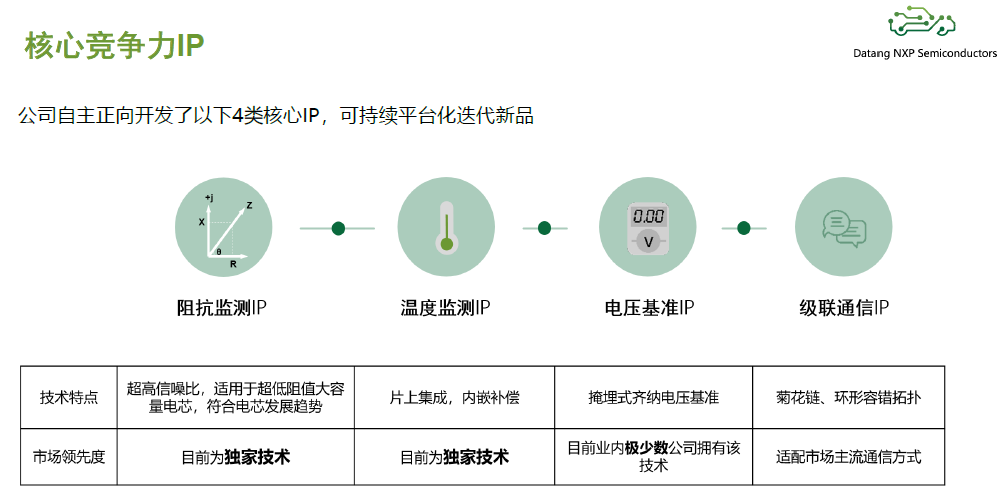

We have not only laid out four major core IP groups
Nearly 100 invention patents have also been formed
Capable of continuously iterating new products on the platform
After all these years
We are based on independent research and development
Strengthen the research and innovation of core technologies
Especially the core product battery management monitoring chip
EIS with unique technological advantages
Received widespread attention from the industry
02
EIS
EIS detection technology is to measure the ratio of disturbance signals to response signals at different frequencies,
obtain the real part Re and imaginary part Im of impedance at different frequencies, and then plot them into Nyquist
plots
It is also possible to obtain the modulus and phase angle through the real and imaginary parts, and then plot them into
a Bode plot
Nyquist plot and Bode plot are commonly used electrochemical impedance spectroscopy

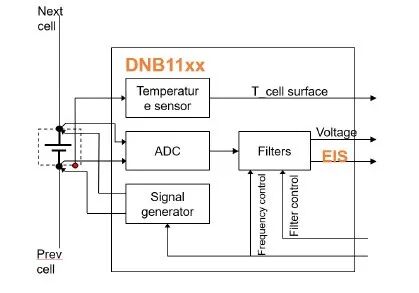

The principle of implementing online EIS monitoring through innovative solutions
How is EIS testing implemented?
Apply a certain frequency of current excitation to both ends of the battery electrode, collect the voltage fluctuations at
the corresponding frequency at both ends of the battery electrode, and through digital processing, obtain the AC impedance
of the battery at that frequency. Plot the AC impedance at different frequencies into EIS diagrams.
What are the parameters of EIS reaction batteries?
The internal temperature of the battery cell, SoH, lithium deposition, mechanical damage, etc. are closely related, and the
relevant functional applications can be achieved through the EIS parameters detected by the chip.

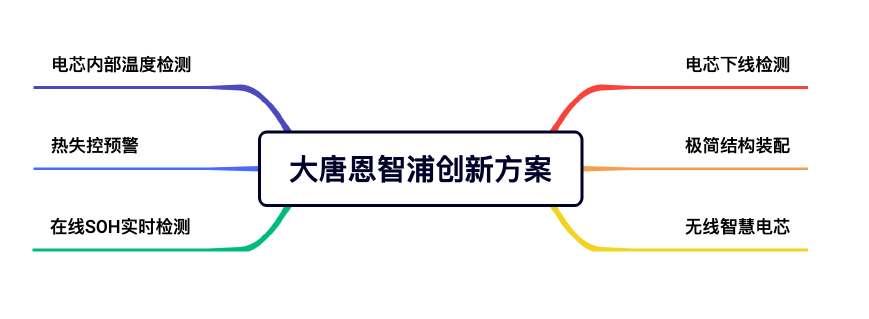

Datang NXP Innovation Solution
The most common AC impedance spectroscopy equipment currently is an electrochemical workstation with tens of thousands
of units, but it is only used in laboratories and cannot be applied online to vehicles/energy storage
Datang NXP Semiconductors integrates the AC impedance spectrum detection function into the battery management
chip to achieve online applications in vehicle and energy storage.
Datang NXP's chip can support hundreds of thousands of devices
03
The commercial value of innovative solutions
The DNB11xx series BMS chip with integrated online EIS impedance monitoring function can provide functions such as
cell offline detection, cell thermal runaway management, fault cell detection, online SOH detection, cell recycling and
secondary utilization, and wireless BMS remote diagnosis for batteries.
双重温度检测
DNB1168 can use the AC impedance monitoring function to achieve rapid temperature detection inside the battery cell.
Compared to traditional NTC (thermocouple) methods, the AC impedance monitoring function can provide a second
level internal temperature detection, which more accurately reflects the current internal temperature of the battery cell
and provides safer protection for new energy vehicles.

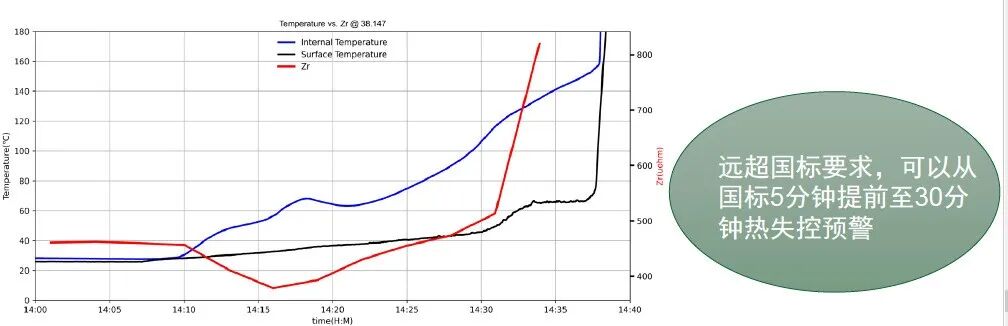

Thermal runaway warning
When there is a violent reaction inside the battery cell, the internal temperature will be significantly higher than the
external temperature, and the greater the temperature difference, the greater the risk of thermal runaway.
Based on internal resistance estimation, the internal temperature of the battery is faster and more accurate compared to
external NTC detection methods. It can suppress the thermal runaway of the battery in the early stages and effectively
solve the problem of battery cell thermal runaway detection, ensuring the safety of the entire life cycle of the new energy
system.

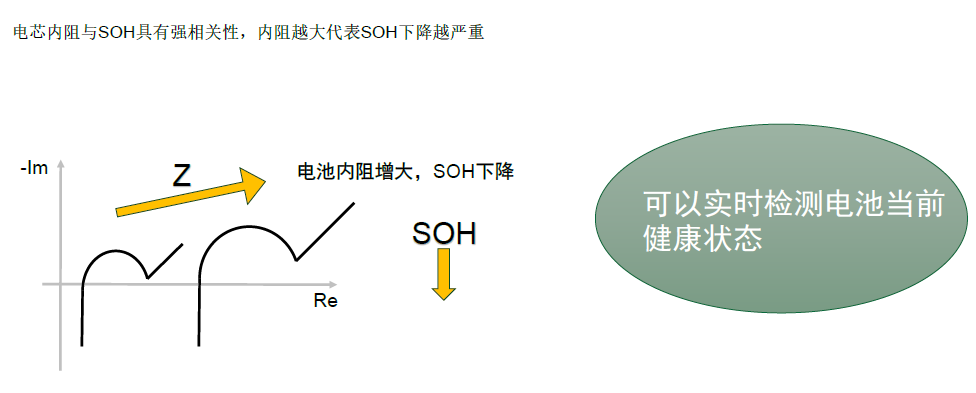

在线SOH检测
The DNB series chips with EIS functionality can integrate the functions of electrochemical workstations that are currently
limited to laboratory conditions into the Pack, thereby achieving true SOH estimation based on the aging degree of the
internal mechanism of the battery cell. Compared with capacity based estimation methods, our solution has disruptive
advantages.
电芯生产下线筛查
A system can screen hundreds of battery cells simultaneously, helping customers achieve better battery cell quality control. Replacing electrochemical workstations with chips to achieve unparalleled economic efficiency of electrochemical workstations.
结构精简

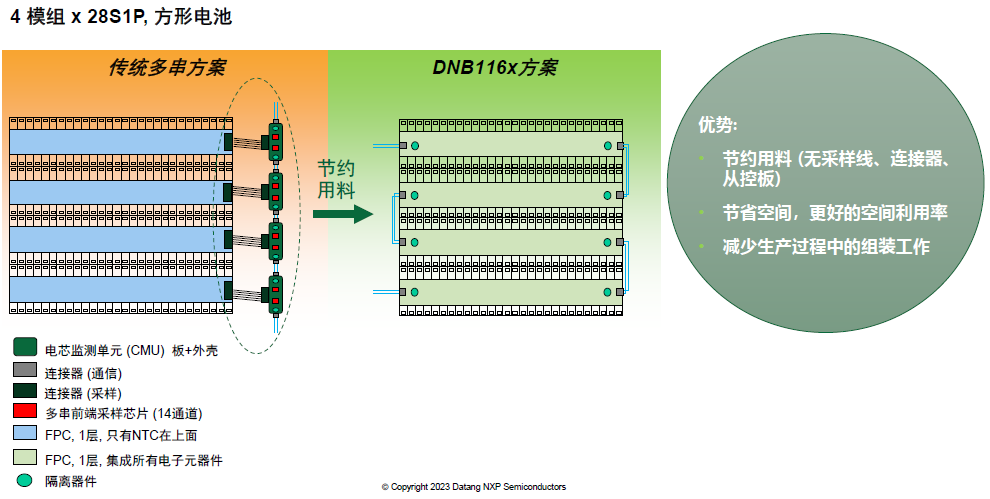

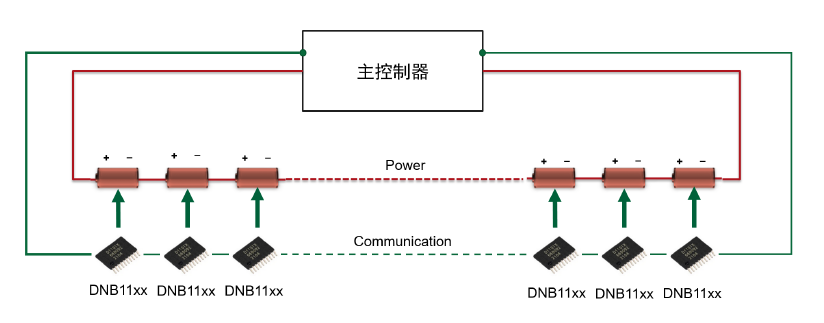

The DNB116x solution under Datang NXP integrates eCCS embedded battery connection system, with the sampling board directly attached to the battery busbar, which can effectively save materials and space, and reduce assembly work in the production process. Compared with the traditional multi string battery solution, the DNB1168 solution abandons NTC and other peripheral circuit designs. The chip has a built-in temperature sensor, which can greatly improve system integration while reducing the use of peripheral devices and lowering system BOM costs. Thus fundamentally solving the space problem, better adapting CTP, CTC, CTB technologies, and helping partners maximize the utilization of power batteries.
电池护照
According to the new EU Battery Law, future power and industrial batteries must have a carbon footprint declaration and
label, as well as a digital battery passport, in order to enter the EU market.

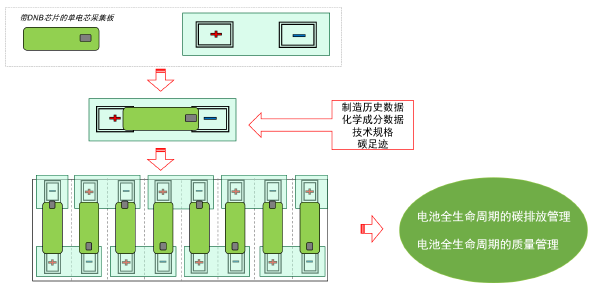

The Datang NXP DNB series AFE chip can be embedded into the battery during the production stage, recording a series
of battery related parameters and unique information such as electrochemical composition and manufacturing information,
achieving health management and carbon footprint tracking throughout the battery life cycle.
04
Next Generation Smart Chip Preview

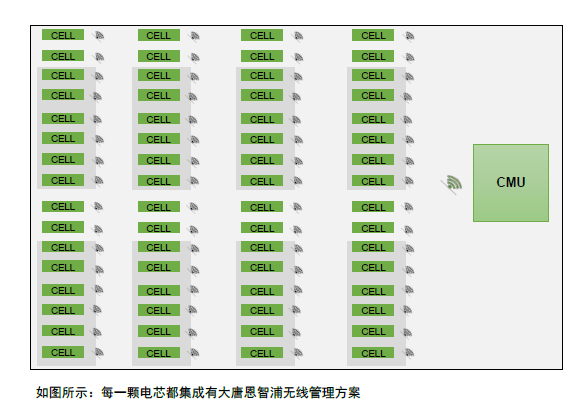

Next generation chips from Datang NXP
Can achieve true zero wire harness between batteries
Achieved space saving
Easy to assemble and maintain
It is also the first proposed solution for wireless smart battery cells in China
-END-
This conference is not only for
Datang NXP provided
An important platform for showcasing innovative achievements
Also for its collaboration with colleagues in the global automotive industry
Deep communication and cooperation provide valuable opportunities
In the future
Datang NXP will continue to uphold technological innovation
The concept of user demand-oriented approach
Continuously promoting the optimization and upgrading of wireless battery management
For new energy vehicles
The Development of Wireless Smart Cells
Contribute more strength!
